1020 Self-Propelled Automatic Washout System

(2 customer reviews)

$3,475.00

SKU: 1020 Categories: , Tag:

Entry Level Production

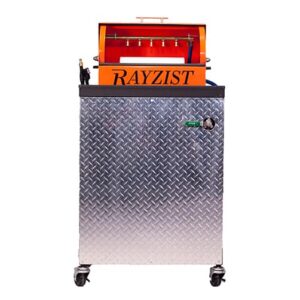

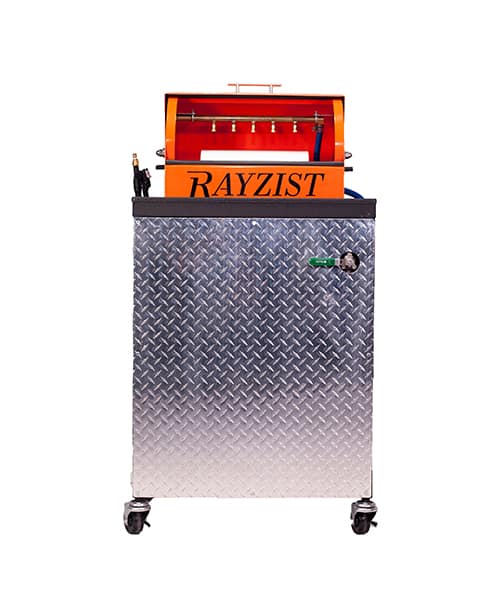

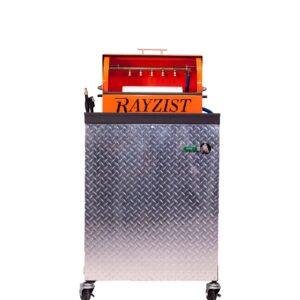

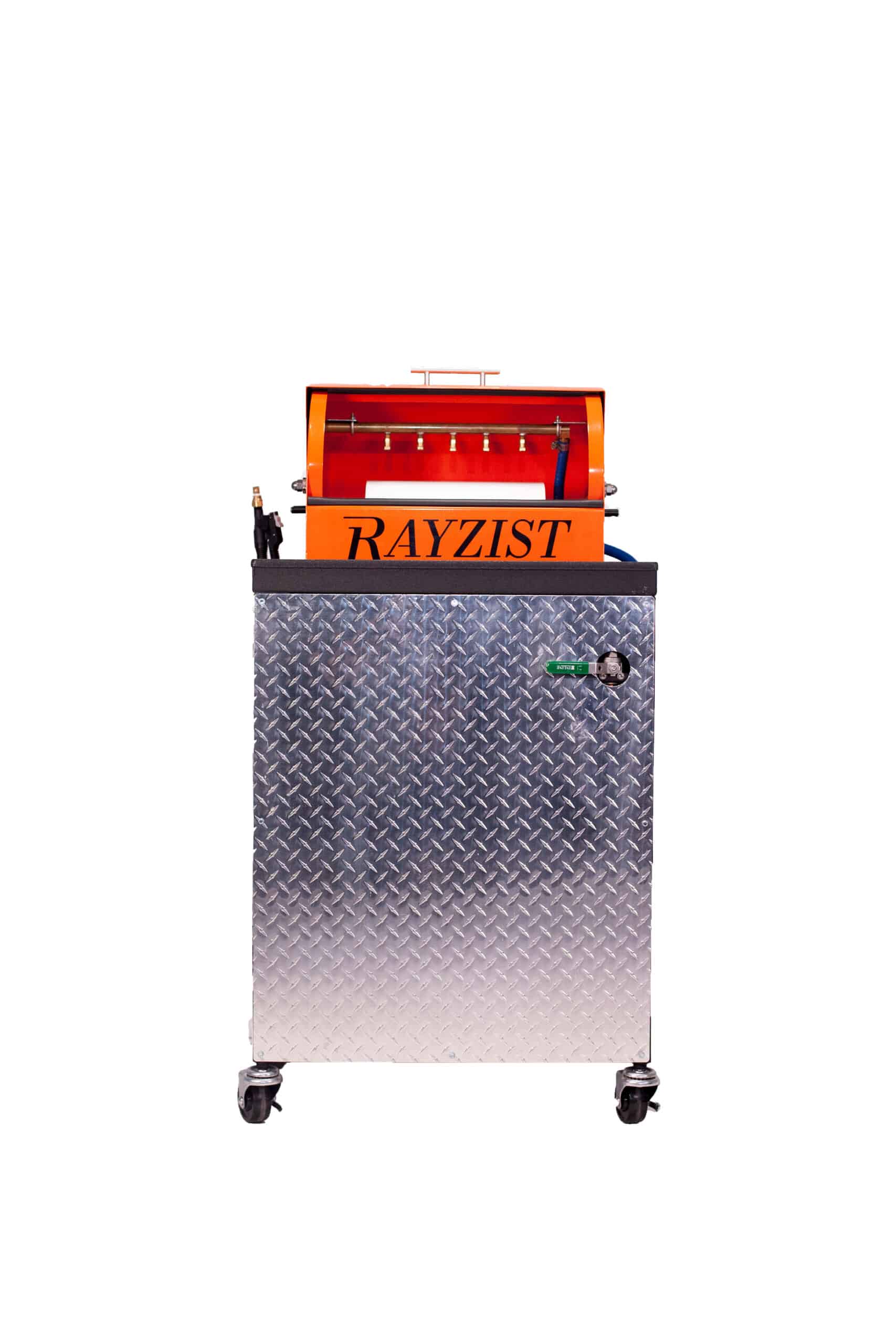

The 1020 Self-Propelled Washout system is the perfect entry-level sandcarving business to mid-size production. The compact size is ideal when space is limited. The 1020 will produce one sheet up to 10” x 20” in 45 to 60 seconds depending on Mil thickness.

You will save time in developing one image up to full sheet. The 1020 Self-Propelled Washout system will allow a company to accept occasional large jobs without stress of hand washing multiple sheets. The 1020 Self-Propelled Washout system is easy to install and operate.

The 1020 washout unit operates on water pressure only, no electricity.

A sales person will contact you after your purchase with additional details as well as freight pricing.

Contact Us if you have questions about the agreement prior to placing your order.

Note: The use of any photoresist film materials in our Rayzist Automatic Washout Systems other than Rayzist SR2000™ or SR3000™ films will void any manufactures warranty. Rayzist cannot validate any foreign materials or chemicals used in our patented film processors.

Additional information

Weight250 lbs
Dimensions19 × 25.5 × 48 in

FAQs

What type of water pressure does the 1020 require?

A minimum requirement of 40 psi is required to operate the 1020 washout system. For optimal performance 60 to 80 psi.

Does the 1020 Washout system require a drain installation?

The 1020 Washout system is prepped with a 1.5″” PVC drain, connect the 1.5″” PVC to your current drain system.

How quickly will the 1020 washout SR2000 or SR3000 photoresist film?

The 1020 will wash 3Mil in 45-55 seconds and increases slightly with thicker Mil.

Is a hot water hook up required?

Hot water is not required, however hot water will develop SR2000 and SR3000 quicker.

What Mil thicknesses can the 1020 Self-Propelled System washout?

The 1020 Self-Propelled System has the capability to washout 3Mil, 4Mil and 5Mil photoresist film.

Features

Features:

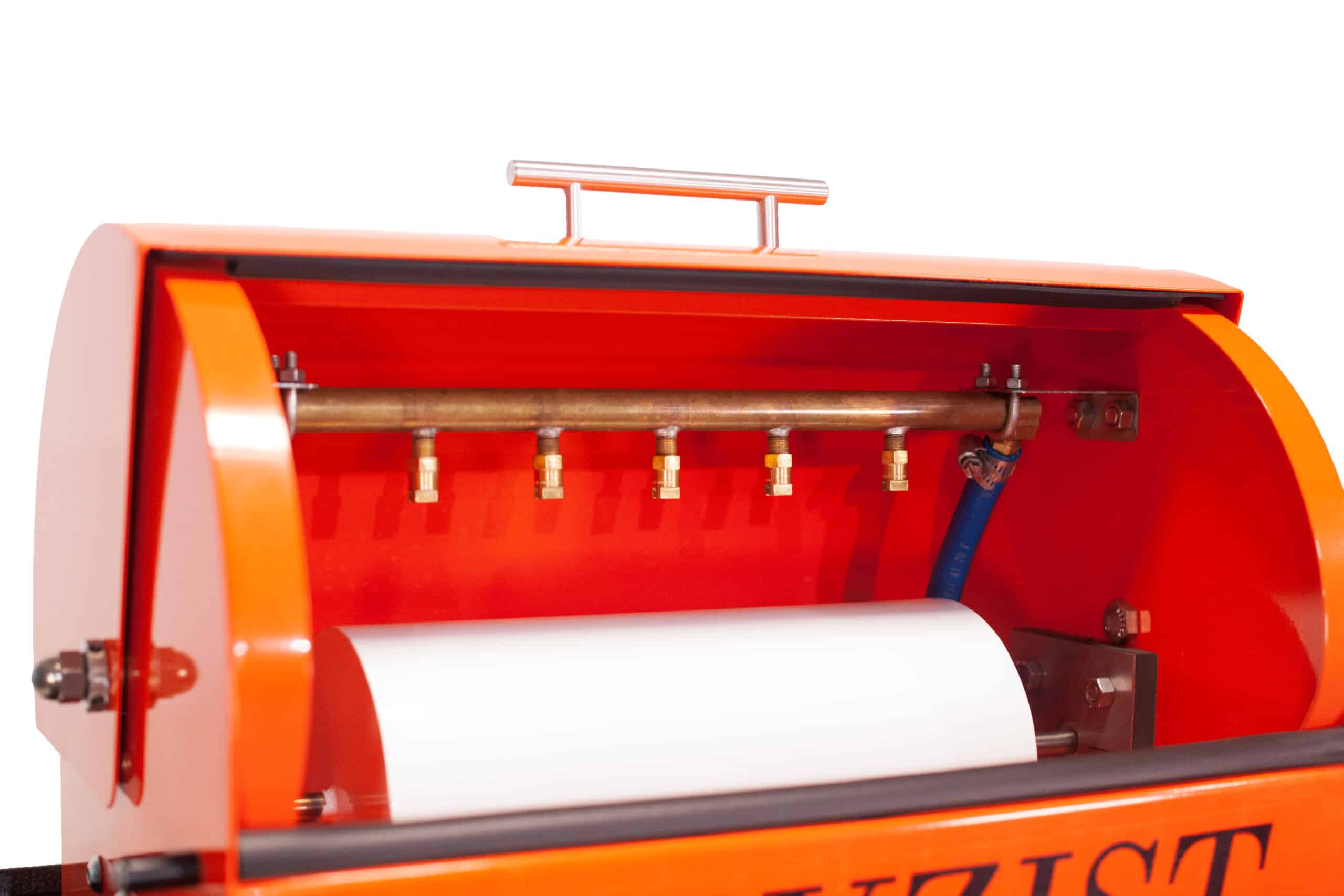

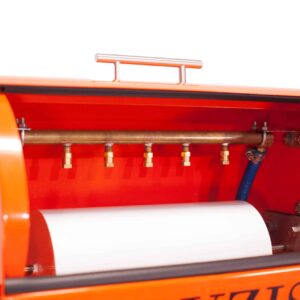

4 High pressure spray nozzles

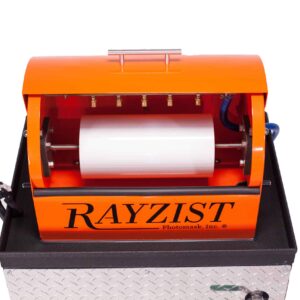

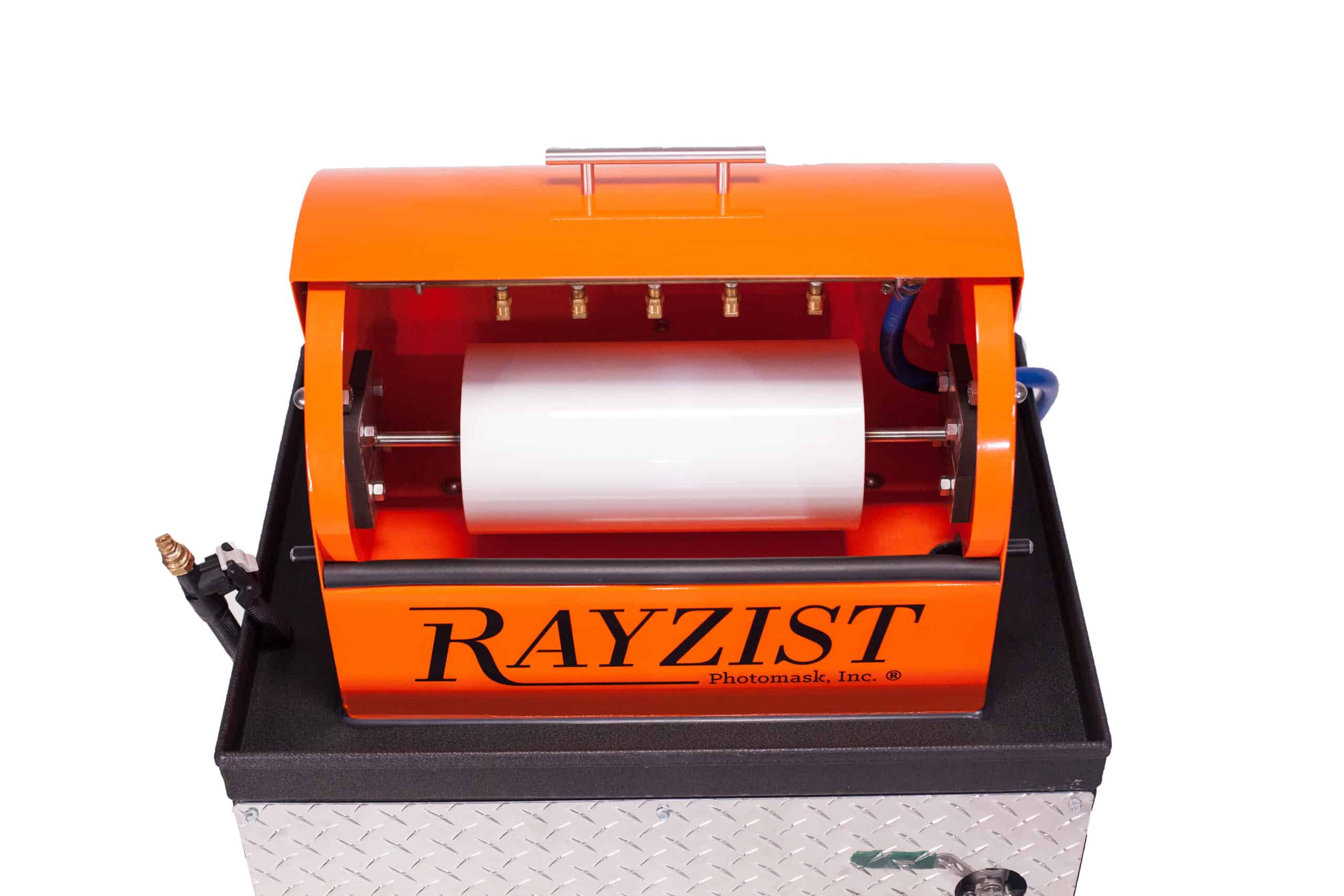

The 4 spray nozzles produce a high-pressure water fan spray over the 10″x20″ drum providing a perfect wash of photoresist film.

Process multiple Mils of photoresist

A The 1020 Self-Propelled System has the capability of processing 3Mil, 4Mil and 5Mil photoresist film.

Easy glide cover

Easy glide, stainless steel wash head cover.

Auxiliary hand sprayer

A Rayzist hand sprayer is connected to the 1020 washout system. Use a hand sprayer to touch up any areas that were not washed out in cycle. This is commonly used for large negative images.

Epoxy coated stainless steel

Rayzist ensures the highest quality of treatment for metal by epoxy powder-coating the stainless-steel head cover, roll top lid, tray and drum for every system we manufacturers.

Locking wheels

It is easy to glide the 1020 washout system into the desired location and lock the wheels.

Technical Details

1020 Manual
1020 Manual

1020 Manual

Self-propelled by water

A Minimum line of 40 to 65 psi water pressure is required to operate rotation of drum.

GPC (gallons per cycle)

1.5 Gal. The 1020 operates on minimal water use by providing a rapid washout.

Overall dimensions

19″d x 25.5″w x 48″h

Maximum washout area

10″w x 20″d

Plumbing

Install water inlet ¾” MGTF (male garden hose thread)
Install 1.5” ABS drain with 1.5” coupler (items not provided) to rear of washout system.

Water Pressure Requirement

A Minimum line of 40 to 65 psi water pressure is required to operate rotation of drum.

Support

Shipping

The 1020 Washout System ships in a crate by freight. A lift gate is required upon delivery if a loading dock or
fork lift is not available.

Shipping crate weight: 300lbs

Note: Shipment times are available through a representative that will contact you within 1-2 business days.

2 reviews for 1020 Self-Propelled Automatic Washout System

  1. Susan Hirsch

    OMG I love my new washout unit… I have been using the hand sprayer with my letra-lite kit for a couple of years and this makes the process so easy and washes out perfectly every time! If you make a lot of masks this will be a lifesaver for you.

  2. Robby

    After doing research on how best to prepare blasting masks we choose the Rayzist 1020 wash out unit. It is easy to use and after some fine tuning we were able to produce high quality masks that blasted well. I would recommend this unit to anyone that wants to expand their sand blasting capabilities.
