Sandcarving Systems

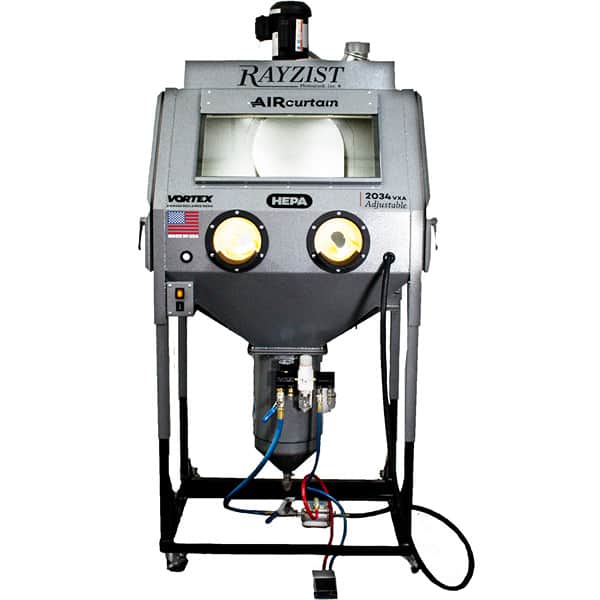

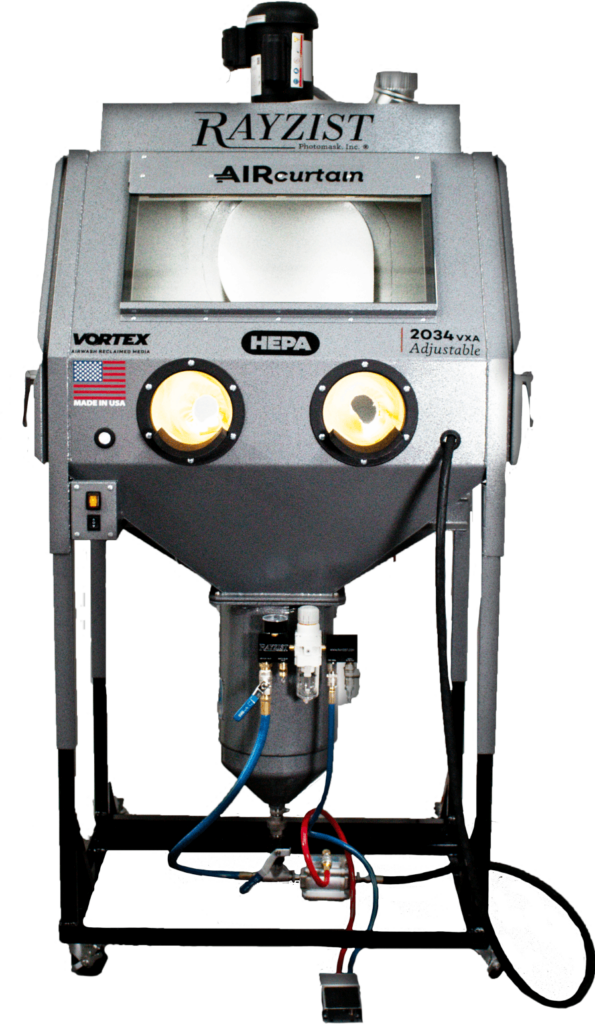

2034VXA Adjustable Sandcarving System

Built for Production!

The 2034VXA incorporates HEPA Filtration and Vortex Airwash Media Reclaim, ensuring the cleanest system available and the most comfortable.

Carve Your Story

Create Your Story With Rayzist Equipment

Our Sandcarving Systems allow you to be versatile and creative.

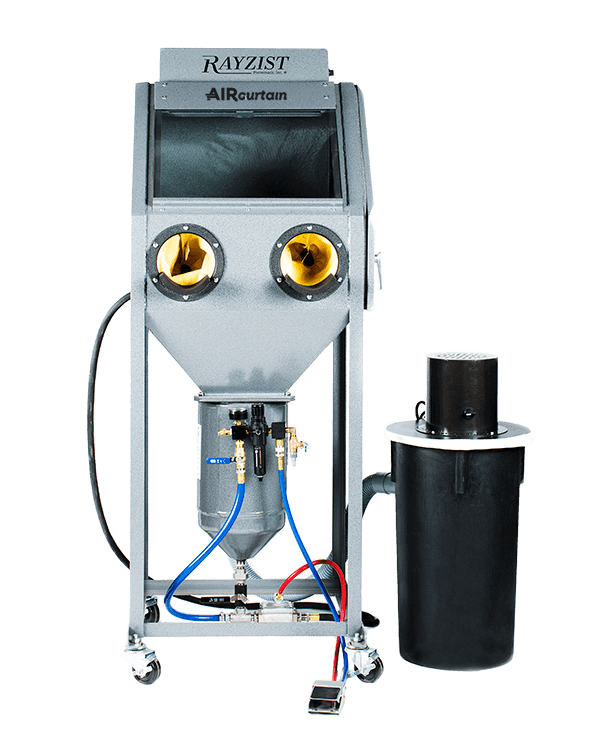

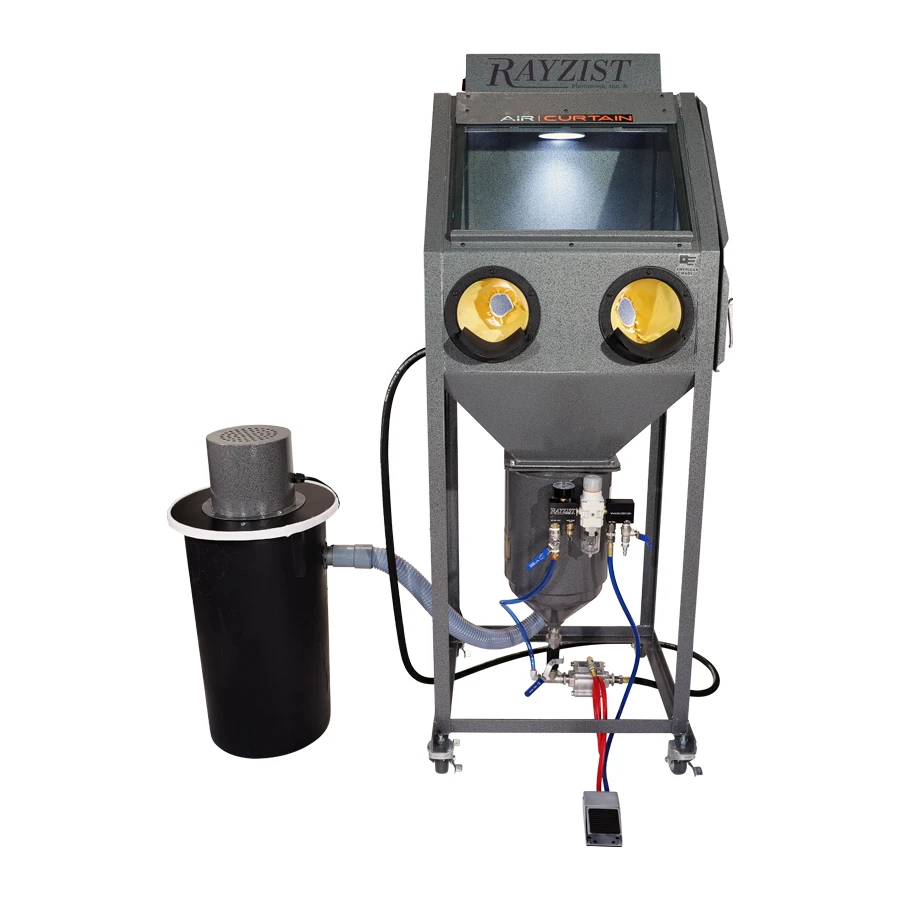

1924 Sandcarving System

Compact & Powerful

The cost effective price is perfect to add sandcarving to your current or new business.

Sandcarving Systems

Which Sandcarving System is right for you?

Compare models

Most Popular
19242034VXA2648VX
Workspace24″w x 24″h x 19″d23″d x 25.5″w x 66″h48.5″w x 40″h x 24″d
Overall size34″w x 22″h x 24″d39″w x 78 .5″h x 33″d  54″w x 86″h x 41″d
Filtration System135CFM Stand Alone DCVortex Airwash SystemDual Vortex Airwash System
HEPA✔︎✔︎
Adjustable✔︎
LightingLED SingleLED DualLED Bar + Dual
Entry DoorSingleDualFront door

 19242034VXA2648VX
Washout Time00:07:00 minutes00:04:00 minutes
Consistent Results
Precision Nozzle1 Nozzle4 Nozzles
Water PressureVariesVaries (on water pressure available)
Number of Sheets1 sheet1 sheet
Heated Water
Cycle SystemManualManual (on/off valve)

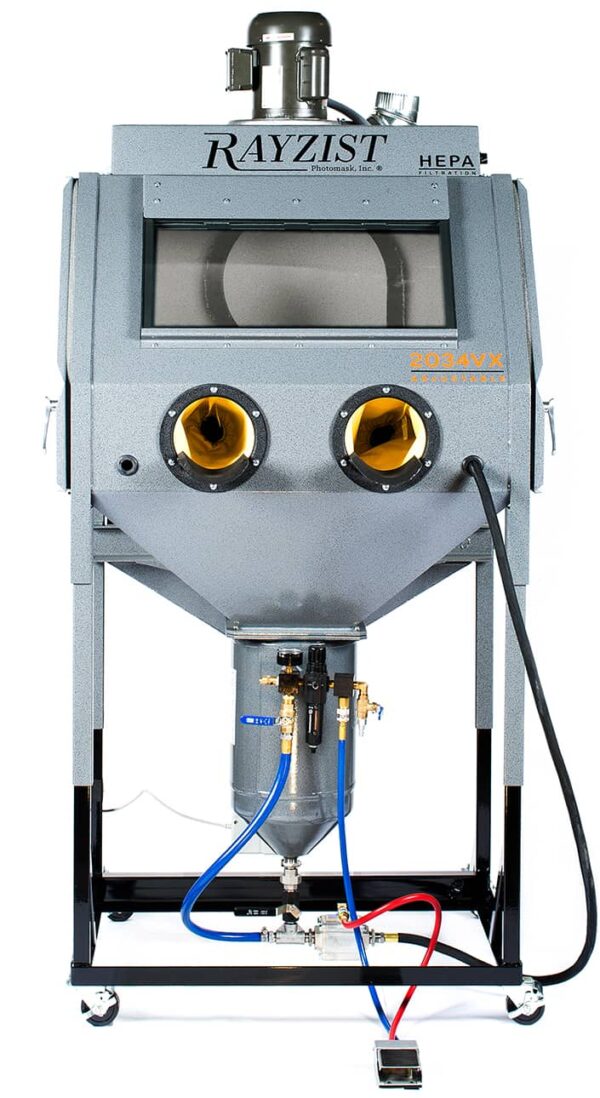

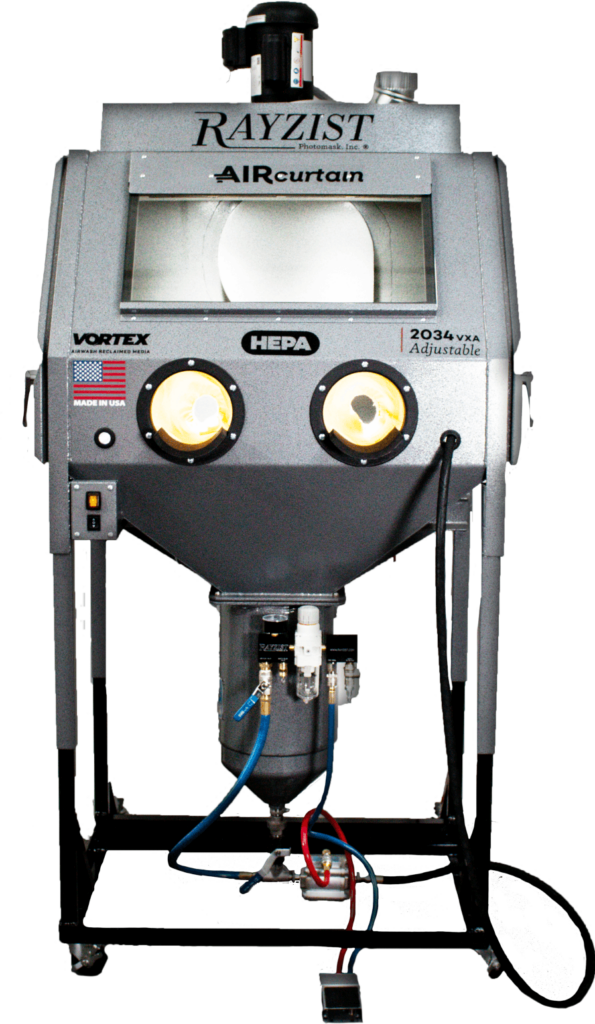

2034 VX ADJ.
Sandcarving
System

Built for Production

2034VXA Sandcarving System is Built for You! Sandcarve into crystal, glass, metal, wood, river rock, stone and more with our 2034VXA Adjustable Sandcarving System. The 2034VXA system can handle any project, from the hobbyist to full-scale production, surface etch to a deep carve. This exclusive ergonomic design adjusts effortlessly. The 2034VXA incorporates HEPA Filtration and Vortex Airwash Media Reclaim, ensuring the cleanest system available and the most comfortable.

System Specifications

Inside work space: 22”d x 34”w x 24”h

Outside dimensions: 34”d x 39.5”w x 80”h

Cabinet weight: 560 lbs

System Capability

Blasting pressure: 5psi to 100psi

Abrasive: 220 grit to 80 grit

System Requirements

Standard 110 volt, 15 amp (Optional upgrade to 220 volt)

Air consumption at 30 psi = 5.5 cfm

(Recommended 2.0HP | 90PSI @ 5.5CFM or greater)

Additional System Features

LED Lighting

Exclusive Ergonomic Design / adjustable

Vortex air wash reclaimed media

Powerful 740 CFM Interior Airflow Suction

14 Gauge Prime Steel

Epoxy Powder Coated

Premium HEPA Filtration

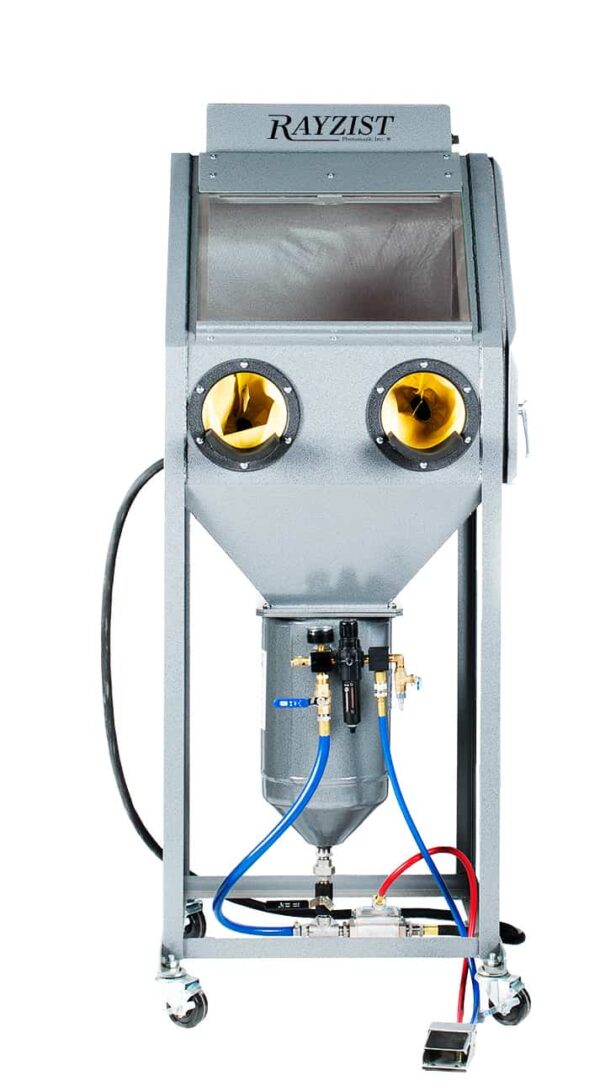

1924
Sandcarving
System

Compact and Powerful

The 1924 sandcarving system is the perfect fit for any entry-level to moderate production etching business. The compact size is ideal when space is limited. The cost-effective price is perfect to add sandcarving to your current or new business. Start decorating glass, crystal, metal, wood, granite, stone and more with this powerful and versatile system, even in the smallest of spaces

System Specifications

Inside work space: 19”d x 24”w x 24”h

Outside dimensions: 23”d x 25.5”w x 66”h

Cabinet weight: 330 lbs

System Capability

Blasting pressure: 5psi to 100psi

Abrasive: 220 grit to 80 grit

System Requirements

Standard 110 volt, 15 amp (Optional upgrade to 220 volt)

Air consumption at 30 psi = 5.5 cfm

(Recommended 2.0HP | 90PSI @ 5.5CFM or greater)

Additional System Features

LED Lighting

Blast speed

Air and Sand flow mixing valves

Controlled media stream

14 Gauge Prime Steel

Epoxy Powder Coated

Includes stand alone dust collector

2034 VX ADJ.
Sandcarving
System

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

System Specifications

Inside work space: 22”d x 34”w x 24”h

Outside dimensions: 34”d x 39.5”w x 80”h

Cabinet weight: 560 lbs

System Capability

Blasting pressure: 5psi to 100psi

Abrasive: 220 grit to 80 grit

System Requirements

Standard 110 volt, 15 amp (Optional upgrade to 220 volt)

Air consumption at 30 psi = 5.5 cfm

(Recommended Grainger model # 48UY04)

Additional System Features

LED Lighting

Exclusive Ergonomic Design / adjustable

Vortex air wash reclaimed media

Powerful 740 CFM Interior Airflow Suction

14 Gauge Prime Steel

Epoxy Powder Coated

Premium HEPA Filtration

1924
Sandcarving
System

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

System Specifications

Inside work space: 19”d x 24”w x 24”h

Outside dimensions: 23”d x 25.5”w x 66”h

Cabinet weight: 330 lbs

System Capability

Blasting pressure: 5psi to 100psi

Abrasive: 220 grit to 80 grit

System Requirements

Standard 110 volt, 15 amp (Optional upgrade to 220 volt)

Air consumption at 30 psi = 5.5 cfm

(Recommended Grainger model # 48UY04)

Additional System Features

LED Lighting

Blast speed

Air and Sand flow mixing valves

Controlled media stream

14 Gauge Prime Steel

Epoxy Powder Coated

Includes stand alone dust collector
